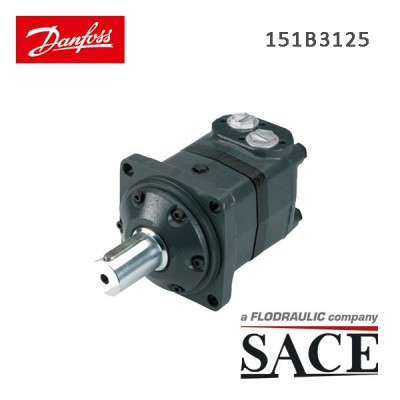

151B3125 - ORBITAL MOTOR OMV - DANFOSS
OMV-0315-C-NN-S16-AE-1E-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN
The O-series is flexible beyond compare. Delivering premium power across the board, these motors cover small to large, medium to heavy-duty needs with pressure capability up to 275 bar (3,990 psi). Robust, reliable and designed to fulfill the latest emissions standards.
* Image for illustration purposes only
- Immediate availability
- Subscribe to our newsletter to keep updated
- Displacement [cm³/rev] [Min] 315
- Displacement [cm³/rev] [Max] 800
- Displacement [in³/rev] [Min] 19.22
- Displacement [in³/rev] [Max] 48.82
- Continuous oil flow [L/min] [Max] 200
- Continuous oil flow [gal/min] [Max] 53
- Intermediate output [hp] [Max] 86
- Intermediate output [kW] [Max] 64
- Intermediate pressure drop [bar] [Max] 240
- Intermediate pressure drop [psi] [Max] 3480
151B3125
- Mounting Flange
- 4 Bolt - Short
- Shaft Style
- None
- Shaft Size
- None
- Shaft Key
- None
- Port Style
- Side ported - offset manifold (4 x M12)
- Port Dimension
- G 1
- Drain Port Style
- Standard - Mounting flange
- Drain Port Dimension
- G 1/4
- Painted
- None
- Geometric Displacement
- 314,5 [19.19]
- Max Inlet Pressure Cont
- 210 [3050]
- Max Inlet Pressure Int
- 250 [ 3630]
- Max Inlet Pressure Peak
- 300 [4350]
