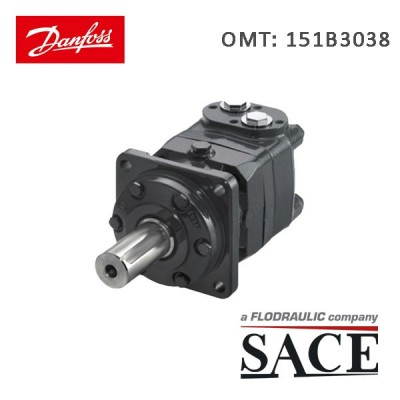

151B3038 - ORBITAL MOTOR OMTS 250 - DANFOSS
The O-series is flexible beyond compare. Delivering premium power across the board, these motors cover small to large, medium to heavy-duty needs with pressure capability up to 275 bar (3,990 psi). Robust, reliable and designed to fulfill the latest emissions standards.
* Image for illustration purposes only
- Immediate availability
- Subscribe to our newsletter to keep updated
151B3038
- Mounting Flange
- 4 Bolt - Short
- Shaft Style
- None
- Shaft Size
- None
- Shaft Key
- None
- Port Style
- Side ported - offset manifold ( 4 x M10)
- Port Dimension
- G 3/4
- Drain Port Style
- Standard - Mounting flange
- Drain Port Dimension
- G 1/4
- Painted
- None
- Geometric Displacement
- 251,8 [15.37]
- Max Inlet Pressure Cont
- 210 [3050]
- Max Inlet Pressure Int
- 250 [3630]
- Max Inlet Pressure Peak
- 300 [4350]
