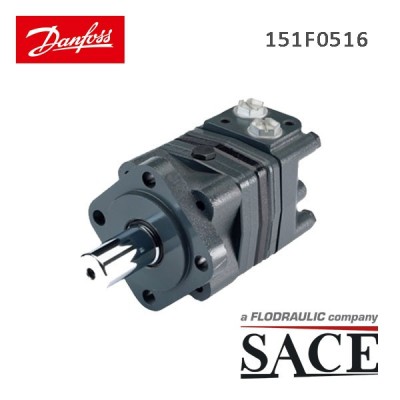

151F0516 - ORBITAL MOTOR OMS 125 - DANFOSS
The O-series is flexible beyond compare. Delivering premium power across the board, these motors cover small to large, medium to heavy-duty needs with pressure capability up to 275 bar (3,990 psi). Robust, reliable and designed to fulfill the latest emissions standards.
* Image for illustration purposes only
- Immediate availability
- Subscribe to our newsletter to keep updated
151F0516
- Mounting Flange
- 4 Bolt - Square
- Shaft Style
- Tapered - Cone 1:10
- Shaft Size
- Dia. 35 mm - M20 x 1.5 tap
- Shaft Key
- B6 x 6 x20 mm (DIN 6885)
- Port Style
- Side ported - offset manifold (2 x M10)
- Port Dimension
- G 1/2
- Drain Port Style
- Standard - Motor flange
- Drain Port Dimension
- GF 1/4
- Painted
- None
- Geometric Displacement
- 125,7 [7.67]
- Max Inlet Pressure Cont
- 230 [3340]
- Max Inlet Pressure Int
- 295 [4280]
- Max Inlet Pressure Peak
- 300 [4350]
