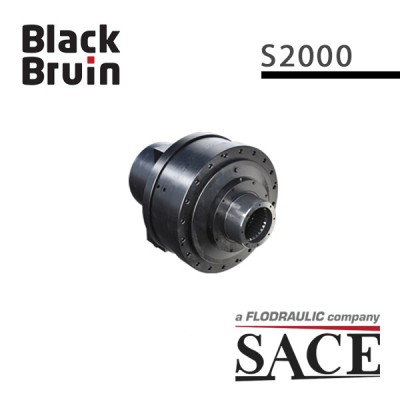

S2000-1260-1N00-1C-0 - S2000 MOTOR - BLACK BRUIN
Model Code Description
- Frame: S2000
- Displacement: 12600 ccm/rev
- Displacement Control: 1-speed, Fixed displacement
- Shaft type: DIN5480-N150
- Housing type: M24 threads
- Immediate availability
- Subscribe to our newsletter to keep updated
|
TECHNICAL DATA: |
|||||||
|
Displacement |
at full displacement |
12600 ccm |
|||||
|
at half displacement |
- |
||||||
|
Maximum torque |
theoretical |
90200 Nm |
|||||
|
with 100 bar |
20100 Nm |
||||||
|
Brake torque |
- |
||||||
|
Max. operating power |
at full displacement |
350 kW |
|||||
|
at half displacement |
- |
||||||
|
|
Max. rotating speed |
at full displacement |
90 rpm |
||||
|
at half displacement |
- |
||||||
|
at freewheeling |
180 rpm |
||||||
|
Min. rotating speed |
(constant running) |
|
|
3 rpm |
|||
|
Rotating direction |
flow direction A to B |
CW |
|||||
|
flow direction B to A |
CCW |
||||||
|
Max. working pressure |
peak pressure |
450 bar |
|||||
|
intermittent |
|
¹⁾ |
400 bar |
||||
|
Max. case pressure |
average |
2 bar |
|||||
|
intermittent |
|
¹⁾ |
10 bar |
||||
|
Pilot pressure for 2-speed valve |
at full displacement |
Y1 |
- |
||||
|
Y2 |
- |
||||||
|
at half displacement |
Y1 |
- |
|||||
|
Y2 |
- |
||||||
|
Brake opening pressure |
minimum |
- |
|||||
|
maximum |
- |
||||||
|
Flushing flow |
recommended |
5,7 - 7,6 l/min |
|||||
|
maximum |
15 l/min |
||||||
|
Fluid viscosity |
recommended |
25 - 50 cSt |
|||||
|
minimum |
15 cSt |
||||||
|
Operating temperature |
recommended |
< 70 °C |
|||||
|
maximum |
85 °C |
||||||
|
Weight |
555 kg |
||||||
|
|
Tightening torque |
housing interface |
²⁾ |
³⁾ |
930 Nm |
M24x3,5 |
10.9 |
